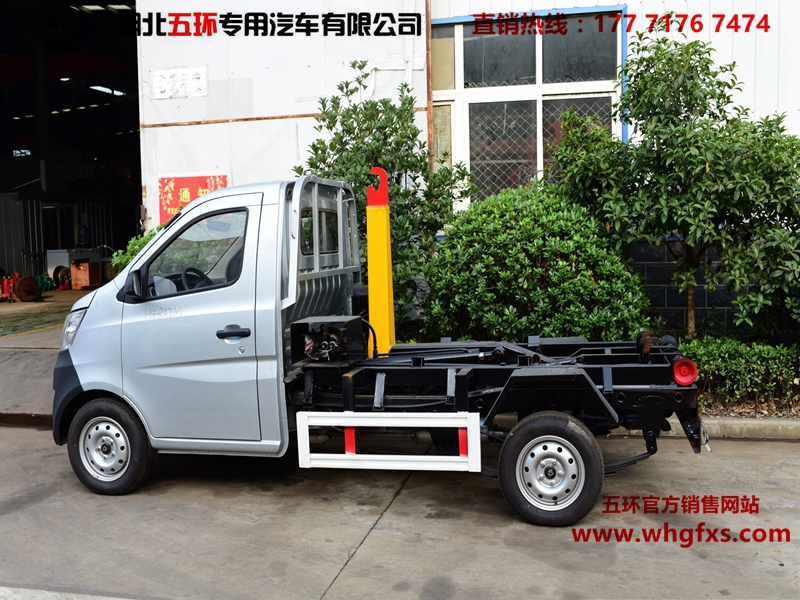

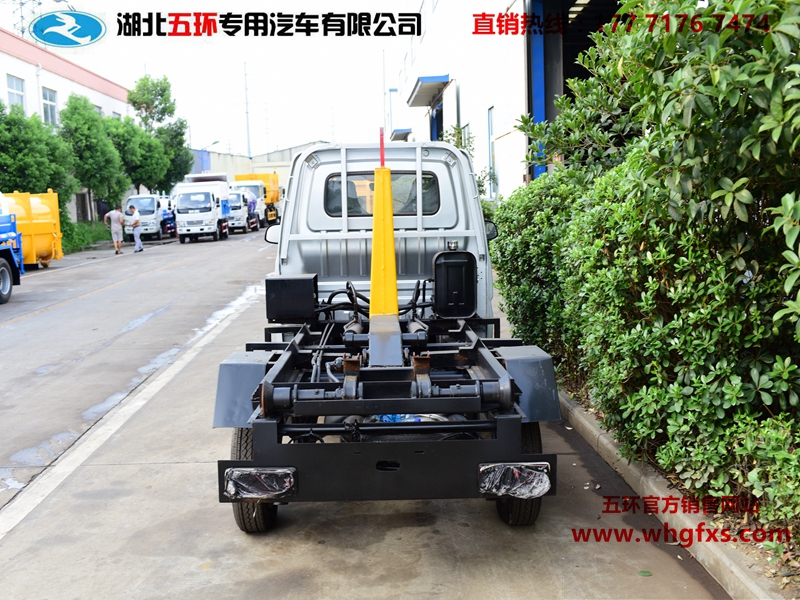

HCQ5031ZXXSC5 Model technical parameters | |||
Name: | HCQ5031ZXXSC5 | Exterior size(mm): | 4420,4130×1520×1930 |
Chassis: | SC1031GDD52 | Container size(mm): | ×× |
Total weight :(kg) | 2840 | Approach angle/ Departure angle(° ) | 40/29 |
Payload:(kg) | 1390 | Front suspension/rear suspension(mm): | 635/795 |
Kerb Mass:(kg) | 1320(Kg) | Max Speed(km/h): | 90 |
Chassis parameters | |||
Chassis: | SC1031GDD52 | Axle weight: | 1420/1420 |
Number of axles: | 2 | Fuel Type: | Gasoline |
Wheelbase(mm): | 2700,2990 | Fronttread(mm): | 1360,1372 |
Max people in cab: | 2 | Rear tread(mm): | 1300 |
Number of tires: | 4 | Number of spring axle: | -/5,4/5 |
Tire Type: | 165R14LT | ||
introduction: | 随底盘选装前保险杠,引擎盖,中网,前雾灯,可不装前雾灯.整车长度/轴距对应关系为(mm):4420/2990,4130/2700.发动机DK12-10对应的油耗值为6.9L/100mL,DK12-10发动机大净功率为61kW.该车用于垃圾的收集清运,主要专用装置为勾臂.仅使用钢板弹簧片数(前/后):4/5 |
Engine parameters | |||
Type | Manufacturer | Displacement(ml) | Power(kw) |
DK12-10 | 重庆小康动力有限公司 | 1240 | 65 |
other parameters |
Introduction: |
more Picture: |
